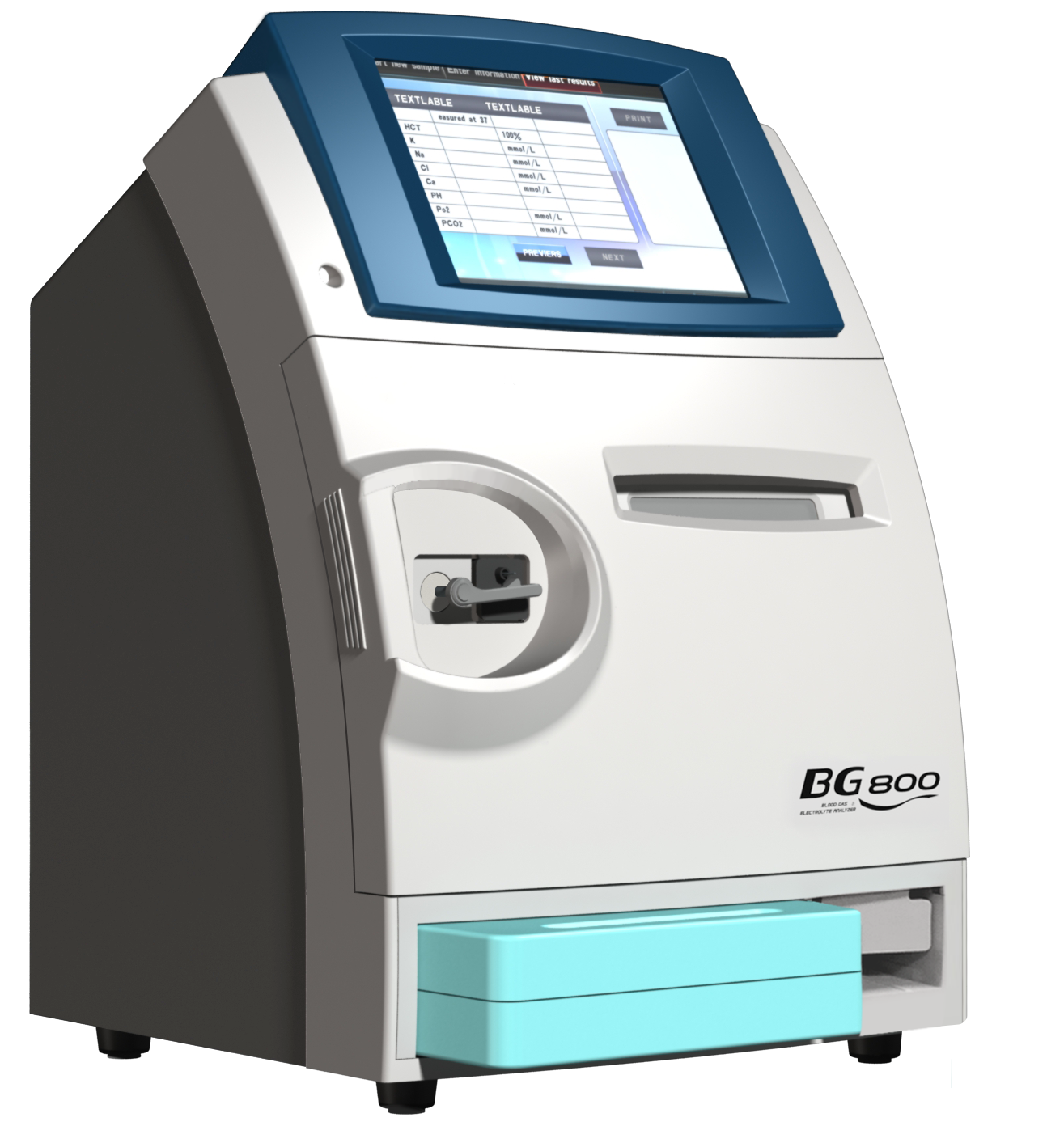

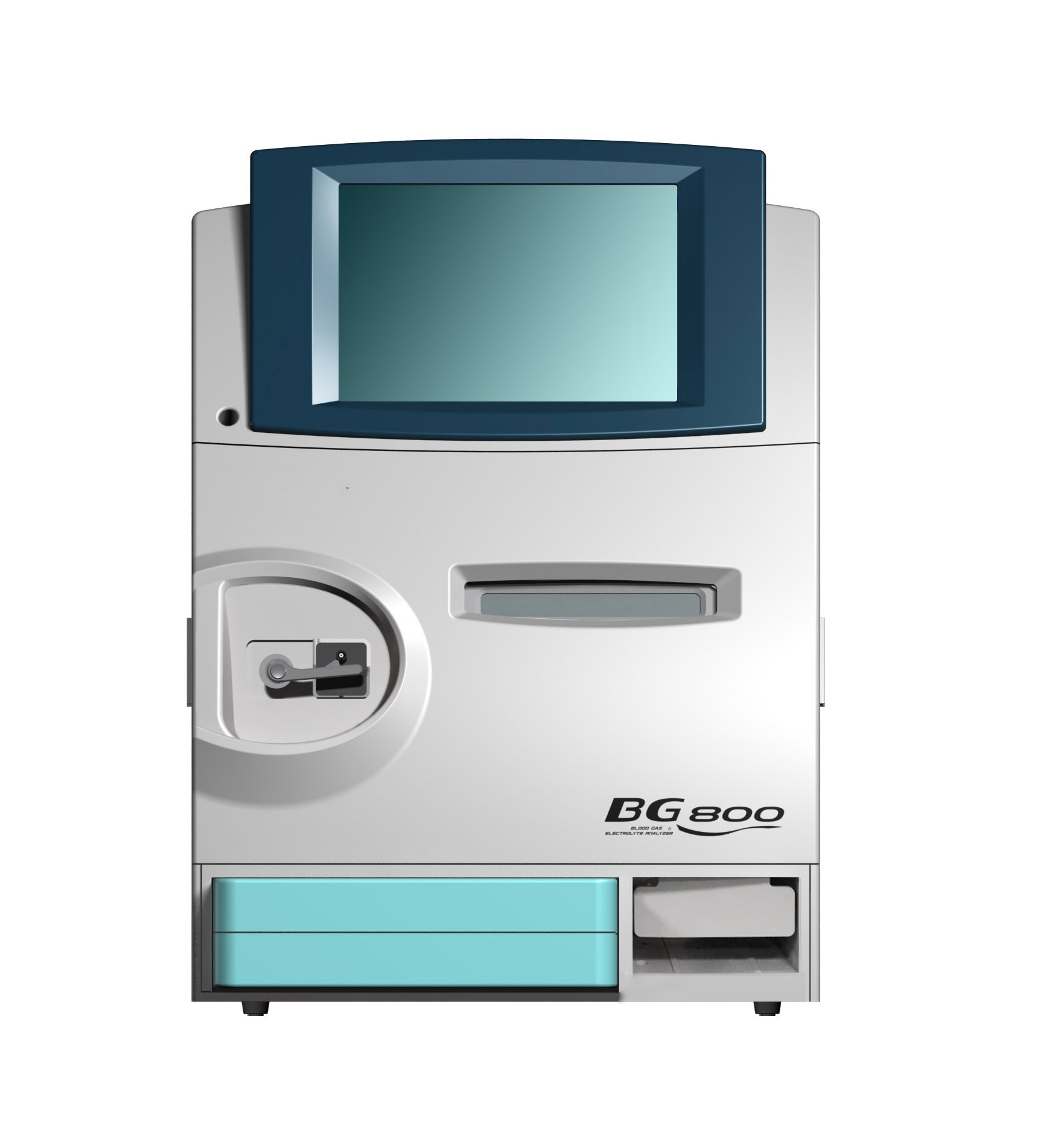

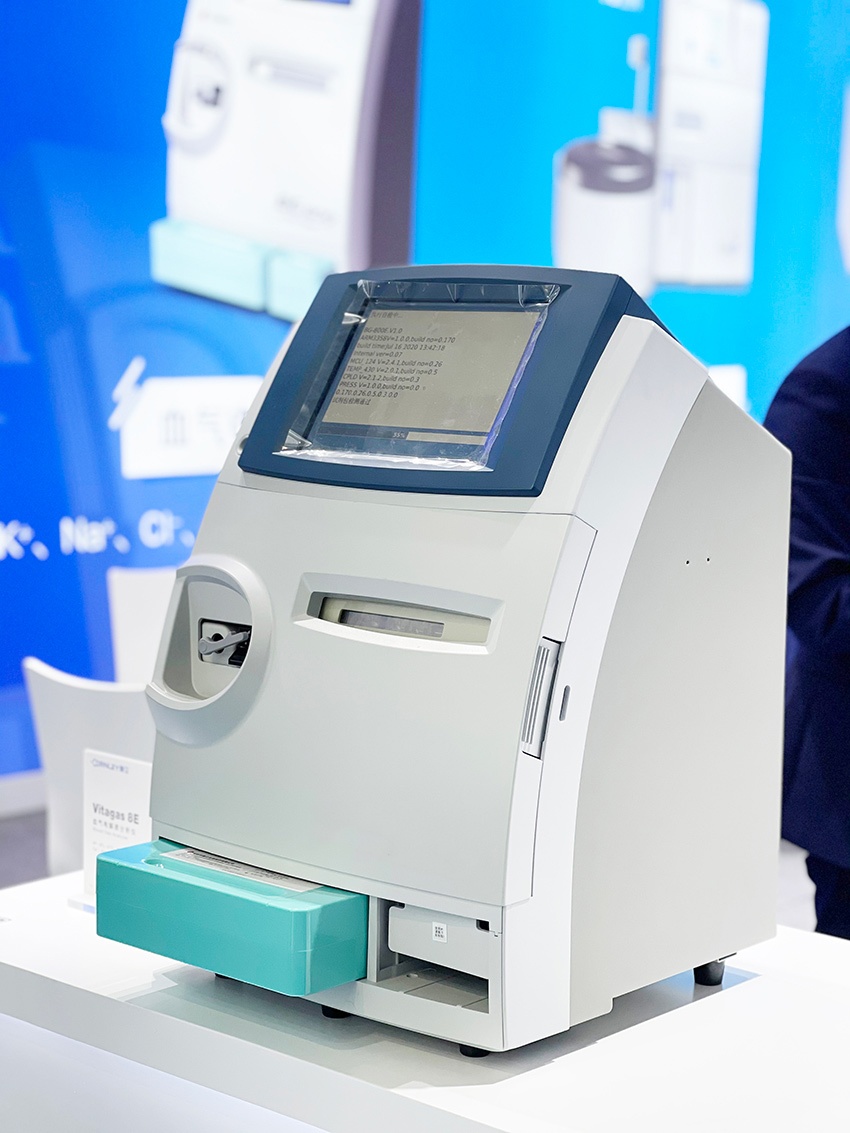

High resolution 10.4” touch screen Blood Gas Analyzer

Desccription:

Specification Sample Type : Whole blood, Serum, Plasma, Dialysate, CSF Model name :pCO2 、pO 2、pH、K+ 、Na+、Cl- 、Ca+、Hct Intuitive Touch screen • High resolution 10.4” touch screen • User-friendly operation interface • Parameter area provides analyzer status at a glance • Online operation and self-diagnostic tutorials Flexible and simple calibrants cartridge • High and low volume testing cartridge can be chose(300,200,150,100,50) • 30 days available on board • Stored at room temperature • All-in-one design without extra consumables ,Cartridge expiration alarm and residue information Rich data management • RS-232 interface • LIS connection under HL7 protocol • Data backup with USB port • Data Storage: ＞10000 Characteristic • Analysis Time: ＜90s • Sample Volume: 95μl Whole blood, 50μl Capillary blood • Calibration: Automatic,1point and 2 point calibration • Battery: Nickel-matal hydride battery, 3.0Ah

We're here to help:
Easy ways to get the answers you need.

Send E-mail Get Price

Product parameters

Specification
Sample Type :
Whole blood, Serum, Plasma, Dialysate, CSF

Model name :pCO2 、pO 2、pH、K+ 、Na+、Cl- 、Ca+、Hct

Intuitive Touch screen

• High resolution 10.4” touch screen
• User-friendly operation interface
• Parameter area provides analyzer status at a glance
• Online operation and self-diagnostic tutorials

Flexible and simple calibrants cartridge

• High and low volume testing cartridge can be chose(300,200,150,100,50)
• 30 days available on board
• Stored at room temperature
• All-in-one design without extra consumables ,Cartridge expiration alarm and residue information

Rich data management

• RS-232 interface
• LIS connection under HL7 protocol
• Data backup with USB port
• Data Storage: ＞10000

Characteristic

• Analysis Time: ＜90s
• Sample Volume: 95μl Whole blood, 50μl Capillary blood
• Calibration: Automatic,1point and 2 point calibration
• Battery: Nickel-matal hydride battery, 3.0Ah
